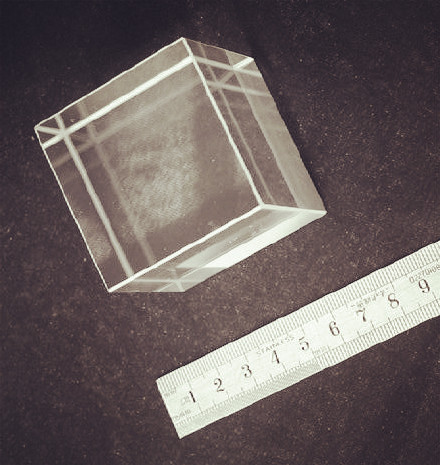

Laser Crystal TeO2

Item No.: TO2
Our ability:can provide customers with Ф 2 inch, 3 inch, 4 inch Ф Ф crystal rods and various types.
Tellurium dioxide (TeO2) is a solid oxide of tellurium. It is encountered in two different forms, the yellow orthorhombic mineral tellurite, β-TeO2, and the synthetic, colourless tetragonal (paratellurite), α-TeO2. Most of the information regarding reaction chemistry has been obtained in studies involving paratellurite, α-TeO2.
Description Review
Description
Tellurium dioxide (TeO2) is a solid oxide of tellurium. It is encountered in two different forms, the yellow orthorhombic mineral tellurite, β-TeO2, and the synthetic, colourless tetragonal (paratellurite), α-TeO2. Most of the information regarding reaction chemistry has been obtained in studies involving paratellurite, α-TeO2.

Basic materials characteristics
  Density(g/cm3) 6
  Melting Point (°C) 733
  Hardness (Mohs) 4
  Colour transparency
  Transparent bandmm 0.33-5.0
  [email protected] >70%
  Index of [email protected] Ne=2.411 No=2.258
  thermal conductivity coefficient(mW/cm*) 30
  velocitykm/sec 0.617 for shear wave along <110> ;4.26 for longitudinal wave along <001>


Running ability:
We can provide customers with Dia:2 inch, 3 inch, 4 inch wafers and crystal rods.
And other customized square ships etc.


Application:
Can be made into all kinds of acousto-optic device, such as acousto- optical deflector, acousto-optic q-switched, surface acoustic wave devices, etc, thus putting these crystals are widely used in laser radar, television, and a large screen display device scanning optical memory, photon computer and laser communication, etc.
TeO2 crystal is a kind of acousto-optic material with high quality factor.There are good birefringence and optical rotatory properties, and the velocity of propagation is slow along [110].If under the same clear aperture, use TeO2 single crystal made the resolution of the acousto-optic device can increases the order of magnitude, the response speed, driving power is small, high diffraction efficiency, stable and reliable performance, etc
