| Running case dimensions: | ||||||
| Capacitor dimensions | unit（mm） | |||||
| shell code | L | W | H | S | W1 | Max weight（g） |
| A | 3.2±0.2 | 1.6±0.2 | 1.6±0.2 | 0.8±0.3 | 1.2±0.1 | 0.04 |
| B | 3.5±0.2 | 2.8±0.2 | 1.9±0.2 | 0.8±0.3 | 2.2±0.1 | 0.08 |
| C | 6.0±0.3 | 3.2±0.3 | 2.5±0.3 | 1.3±0.3 | 2.2±0.1 | 0.22 |
| D | 7.3±0.3 | 4.3±0.3 | 2.8±0.3 | 1.3±0.3 | 2.4±0.1 | 0.4 |
| E | 7.3±0.3 | 4.3±0.3 | 4.1±0.3 | 1.3±0.3 | 2.4±0.1 | 0.75 |
| F | 7.3±0.3 | 6.0±0.3 | 3.5±0.3 | 1.3±0.3 | 4.0±0.1 | 0.8 |
| Y | 7.3±0.3 | 6.0±0.3 | 4.1±0.3 | 1.3±0.3 | 4.0±0.1 | 1.05 |
| H | 7.3±0.3 | 6.0±0.3 | 6.0±0.3 | 1.3±0.3 | 4.0±0.1 | 1.3 |
| Z | 8.0±0.3 | 12.0±0.3 | 8.0±0.3 | 1.8±0.3 | 8.0±0.1 | 3.3 |
| below is a table of relation between CA45 series of our company and similar foreign products | |||
| OURS | VISHAY | AVX | KEMET |
| CA45 | 492D | TAJ | T492 |
| CA45A | TAJ | T492 | |
| CA45C | CWR09 | TPM | T510 |
| CA45D | TPS | T520 | |
| CA45F | TBW | T496 | |
| CA45L | CWR09 | TPS | T494 |
| CA45W | TPM | T510 | |
| CA45T | THZ | ||
| CA45H | 495D | TAC | |
| CA45M | T97 | ||
| GCA45 | CWR09-11 | TAZ | T492 |
| CUSTOMIZED ARE AVAILABLE | |||
| Running mode: |

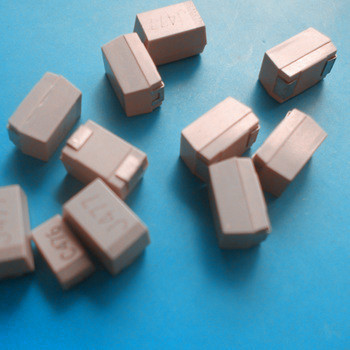

| 1.Chip tantalum solid electrolyte capacitor |
| 2.non-solid tantalum electrolytic capacitor |
| 3.High energy composite tantalum capacitor |
